Seeker
EO GUIDANCE MODULE

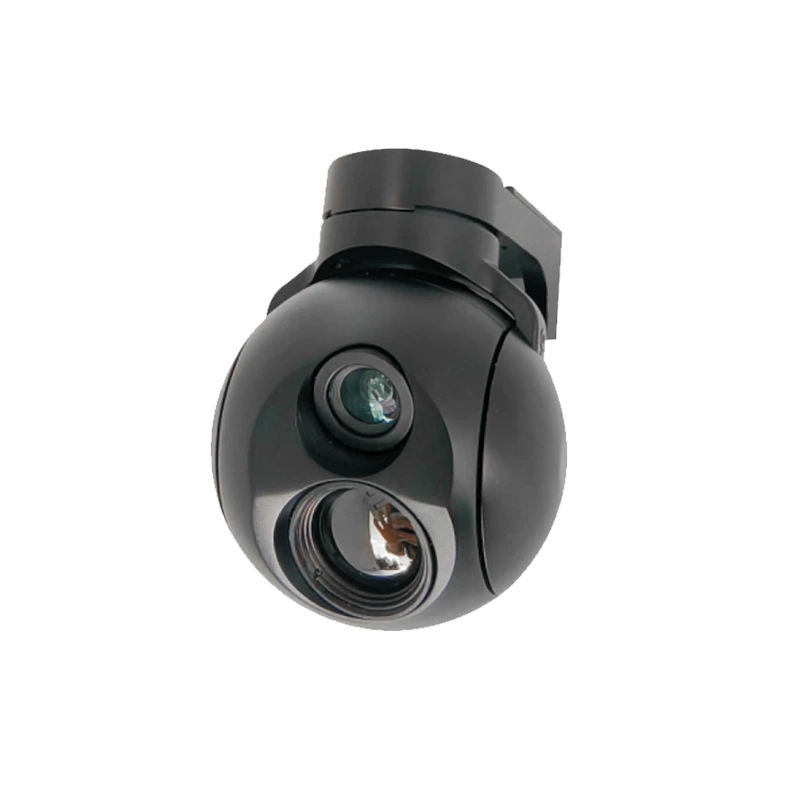

GD-65 MINI SEEKER
WEIGHT:＜300g
RESOLUTION:1920*1080(daylight) 640*512(infrared)
FOCAL LENGTH:8mm(daylight) 18mm(infrared)
PITCH:-90°~30°
STABILITY PRECISION:0.5mrad(1°/1HZ)
RANGE(6*4):≥3km(daylight) ≥1.5km(infrared)
YAW:-110°~110°
FRAME RATE:60HZ
FOV:38°*22°(daylight) +24°*18(infrared)
GD-75 MINI SEEKER
WEIGHT:＜435g
RESOLUTION:1920*1080(daylight) 640*512(infrared)
PITCH:-100°~30°
Angular accuracy:0.3°
Laser ranging RANGE:3km(±1m)
Azimuth:-110°~110°
FRAME RATE:60HZ
FOV:42°×24.5°(7.2mm) 12.7°×7°(25mm)(daylight) +18.1°×14.5°(24mm)(infrared)

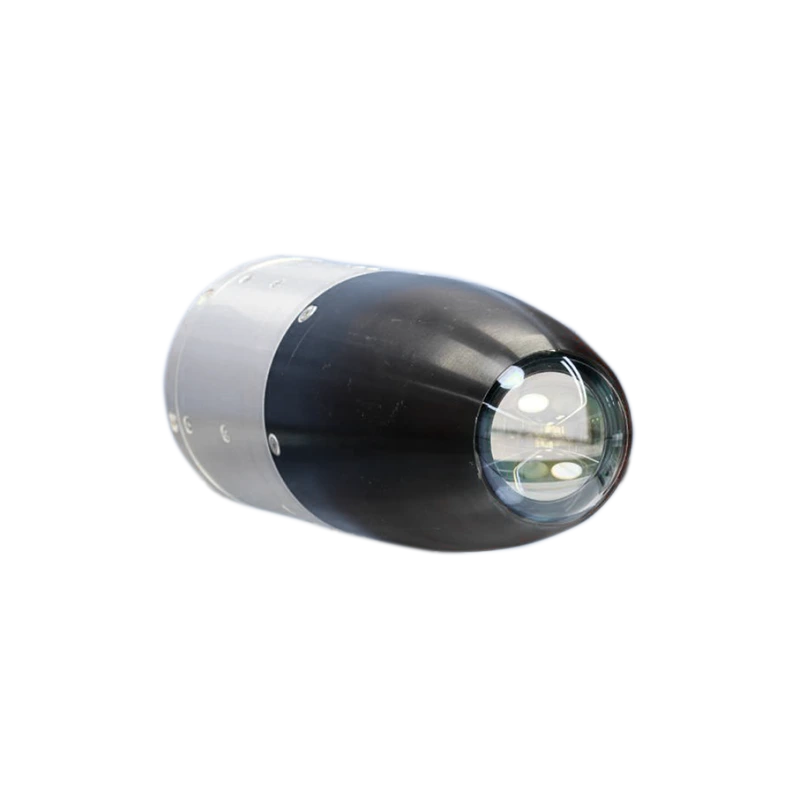

Integrated Guidance and Flight Control System
WEIGHT:≤1kg
Power consumption：≤10W
Power：22V-32V
Dimension：Customizable
IMU：Customizable
Detection range：≥3.5km
Angular accuracy：3mrad（1σ）
Linear FOV:±10°/±12°
FOV:±20°/±24°

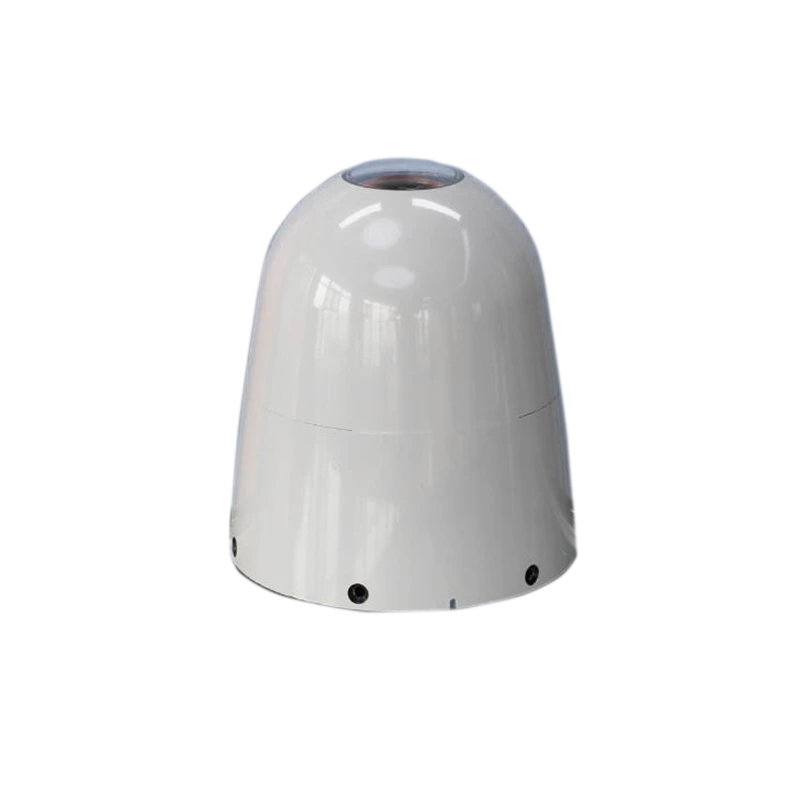

Semi-Active Strapdown Laser Seeker
FOV：±24°
Linear FOV：
Angular accuracy：3mrad（1σ）
Detection range：≥3.5km
Weight：≤1kg
Dimension：φ50*120mm, customizable
Power：22V-32V
Power consumption：≤10W
Gimbaled D/N Composite Seeker
Azimuth：±13°
Angular accuracy：0.2°
Pitch：±15°
Max angular velocity：≥60°/s
Weight：≯ 600g
Dimension(mm)：φ80*127
Resolution：1920*1080(Daylight)/640*512(IR camera)
FOV:≥12°*7°(Daylight)/8°*7°(IR camera)
Recognition distance:≥2.5km(6m*4m)(Daylight)/2km(6m*4m)(IR camera)
70mm Strap-Down Laser Seeker
FOV:±18°
Linear FOV:±10°
Angular accuracy:≯1.0mrad(1σ)indoor
Detection range:≥3km
Weight:≤0.5kg
Power:25V-31V
