RTS-50L
LONG-RANGE MULTIPURPOSE UAV SYSTEM
RTS-50L

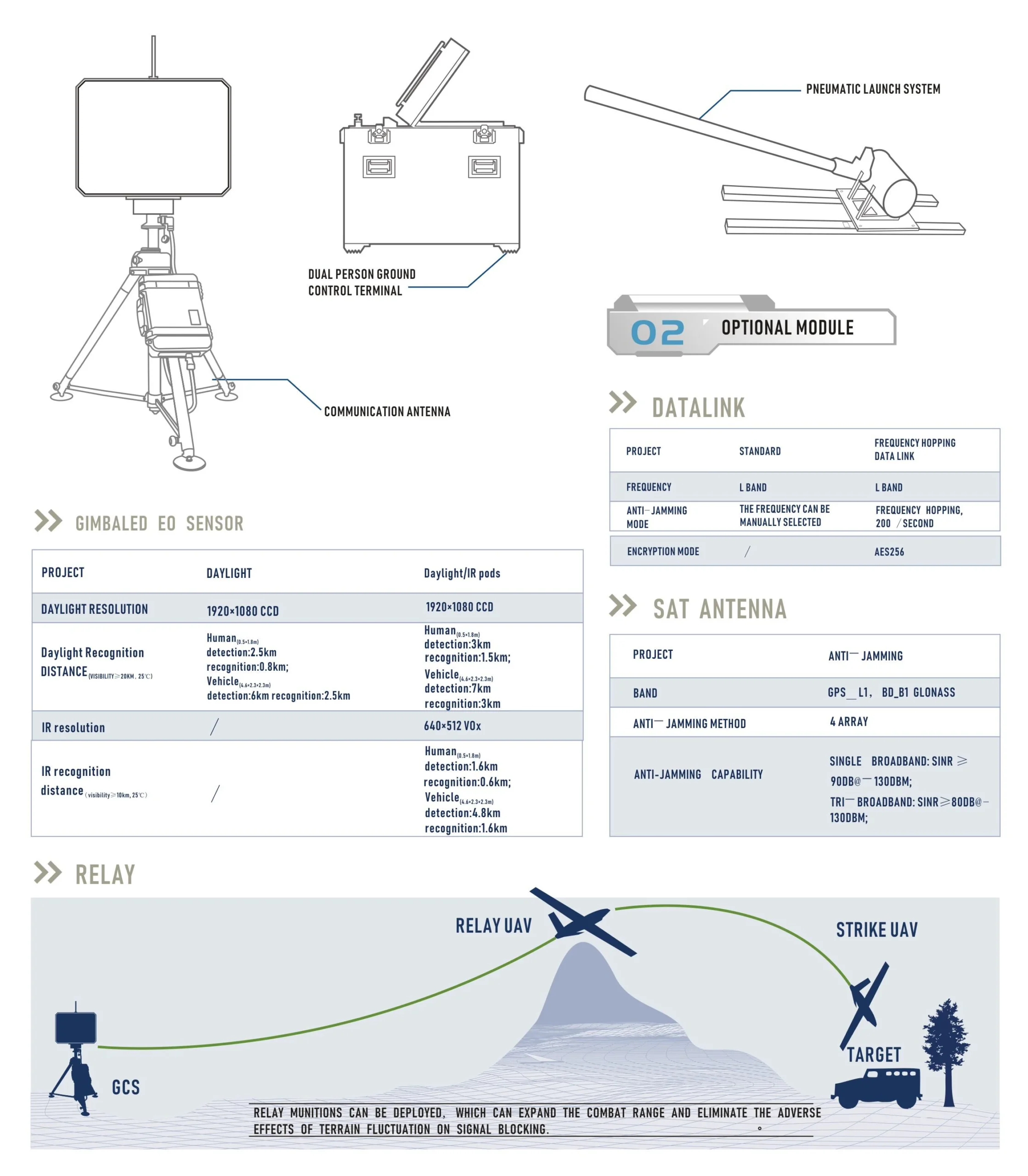

KEY FEATURES
♦ Vehicle-borne
♦ Pneumatic Launch
♦ Modular design for rapid deployment
♦ Optional anti-jamming GPS antenna
♦ Optional anti-jamming data link
♦ Relay function available
| WING SPAN | 3800mm |
| LENGTH | 1850mm |
| MTOW | 45kg |
| WIND RESISTANCE | ≤10m/s（90°crosswind) |
| CRUISING ALTITUDE | 500-3000m(relatine altitude) |
| CEILING | 4500m sea level(recommended to fly blow 3500m) |
| OPERATION RANGE | 100km |
| DEPLOY | 30min |
| SPEED | cruise 30m/s,MAX 40m/s |
| ENDURANCE | 90min |
| CEP | 1.5m |
| PAYLOAD | 8kg |
